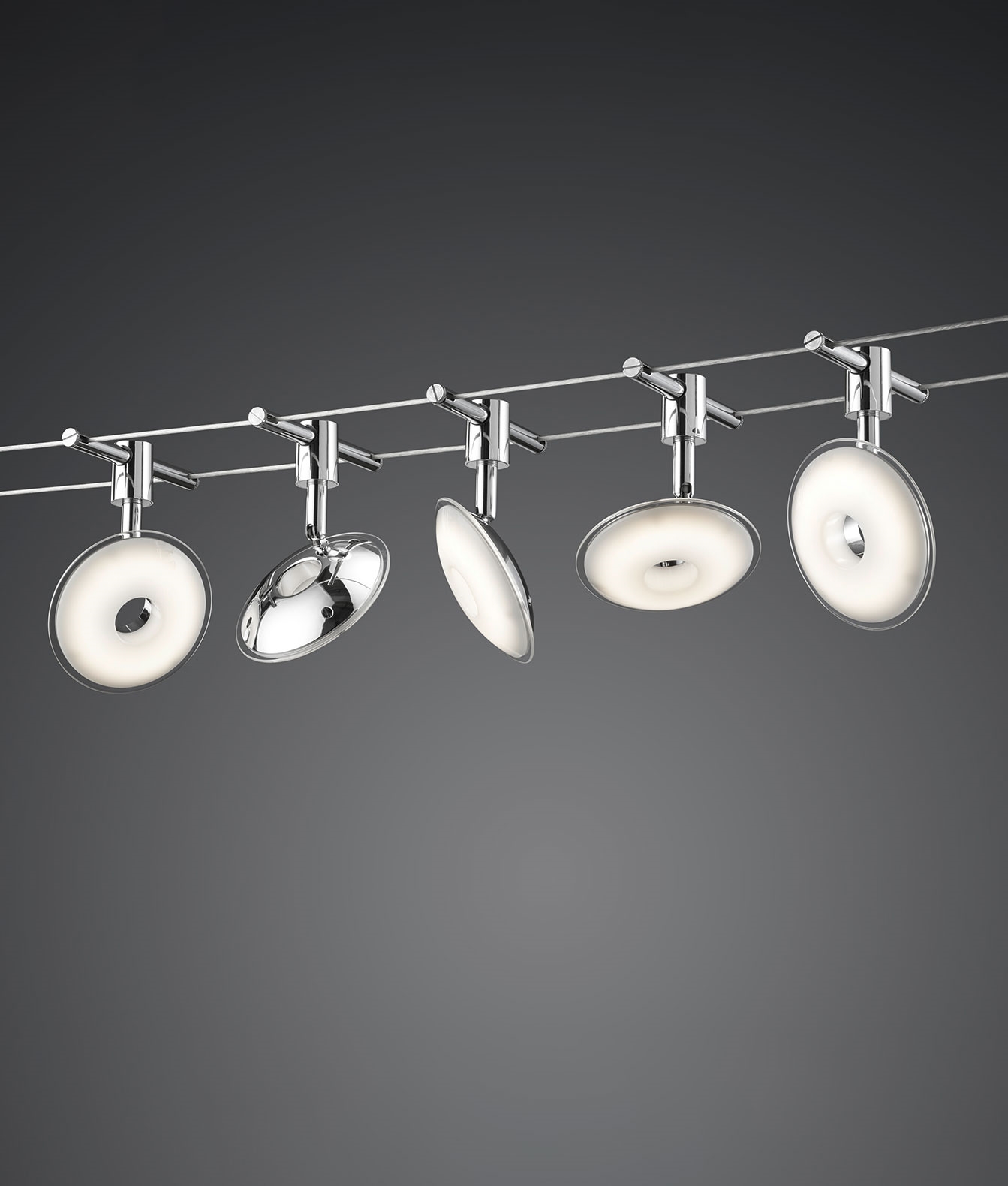

This is a package that includes all the necessary components to install a tension wire system up to 5 metres in length. The kit comes complete with five modern ring spots each with a 3.8 watt LED lamp providing a 350 lumen output and a warm white light.

The system is supplied with a 20va white circular transformer, please note however this is a non-dimmable system.

If you want to install tension wire in your home or retail space but have previously been put off by the potential complexity then this is the product for you.

The two wires will need to be 110mm apart.

This item comes with a 5 year warranty.

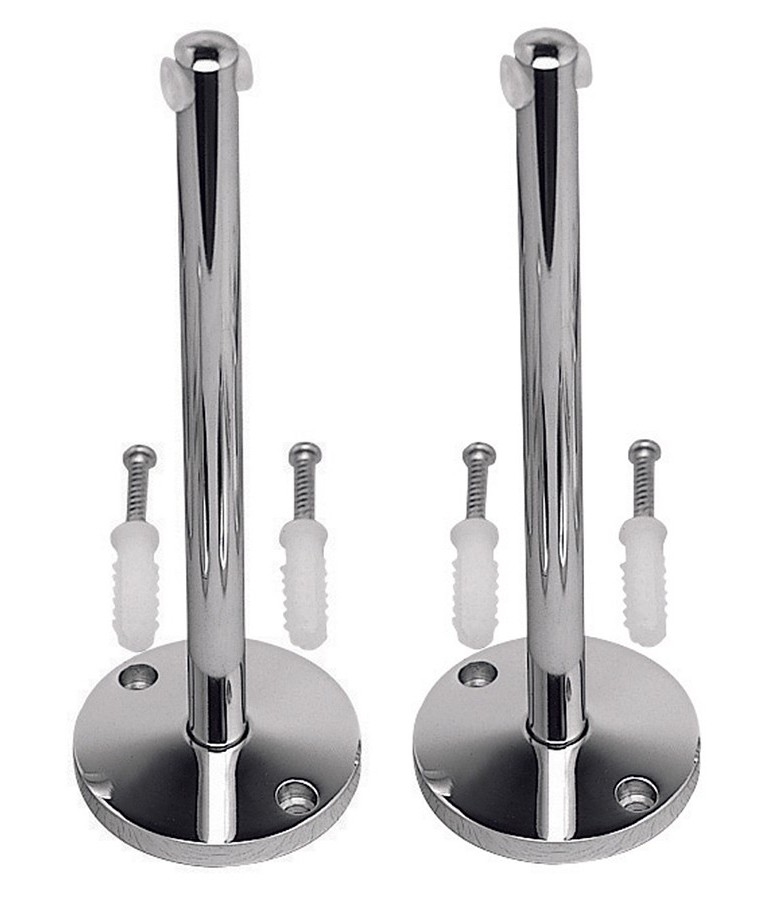

Please note: This product is suitable for wall to wall installation only. However by purchasing the additional ceiling rods you can turn this into a ceiling installation. You will need a minimum of two sets of rods to do this. Longer runs and heavier spotlights will require 3 or 4 pairs of rods to reduce sagging. Rods suspend the wire system 160mm from the ceiling.

Full diagrams and instructions are available in the specification tab.

Track Compatibility
	3-Circuit Track Lighting – Recessed
	3-Circuit Track Lighting – Surface or Suspended
	Aesthetic Domestic Track System
	Basic Mains Track
	Low Voltage Tension Wire Components
	Luxury Magnetic Light Track 48v
	Micro Elegance - Mains LED Track System
	Signature Recessed Track System
	Signature Single Circuit Track System

Number Of Lamps	5
Lamp Type	Long Life LED Light Source
Lamp Lumens	350
Lamps Included	Yes
Dimmable?	No
Max Wattage	20w
Total Wattage	19w
Construction	Metal and Plastic
Wiring Details	Class 2 - Double Insulated - Requires no Earth Connection
Kelvin	3000°K - Warm White
PDF Document(s)	Instruction Sheet Diagram

My wall to wall dimension is 5.1M. Will this kit be ok for this distance or will I need more wire?
Make a note in the comments box when you place your order and we will ensure you have sufficient wire for your project.

Can I extend the cable between the transformer and the tension wire to approximately 1.5 metres?
You can purchase tension wire separately to achieve this, which can be found here: https://www.lightingstyles.co.uk/cable-tension-wire---insulated It would need to be 1.5 metres for both ends, so 3m total.

how long are the feed cables from the transformer to the tension cable?
They are 450mm in length.

are these LED sealed spotlights or can you put replacement bulbs in these spot lights
The LEDs are built-in and can not be replaced, they do have a very long lamp life.

The distance between our 2 walls is 6 metres. Can you supply accordingly?
Yes, extra tension wire cable can be added to your order. Please call our sales department who can help you.

Can you purchase a different transformer to enable this system to be Dimmable?
The Built-in LED lamp heads are not dimmable. Changing the transformer would not make this system dimmable. A bespoke system would be better if a dimmable system is what you require. Please call us so we can help you with this.
